Make: Wirotech
Year: 2011
Production material: Hot rolled steel, Cold rolled steel, Pickled steel, Galvanized steel
– Min./Max. ΓΈ tube: 14 – 32 mm.
– Min./Max. Thickness: 0,7/ 2,0 mm.
– Min./Max. width tape: 43 / 101 mm.
– Max. speed of line: 60 meters per minute
Pipes that can be produced:
– Tubes (mm): 14; 16; 18; 20; 22; 25; 26,9; 28; 32
– Square (mm): 15×15; 16×16; 18×18; 20×20; 25×25
– Rectangle (mm): 20×10; 25×15; 30×10; 30×15; 30×18; 30×20;
– Other (mm): eliptic 44×18; eliptic 30×20; semioval 30×15
Line components:

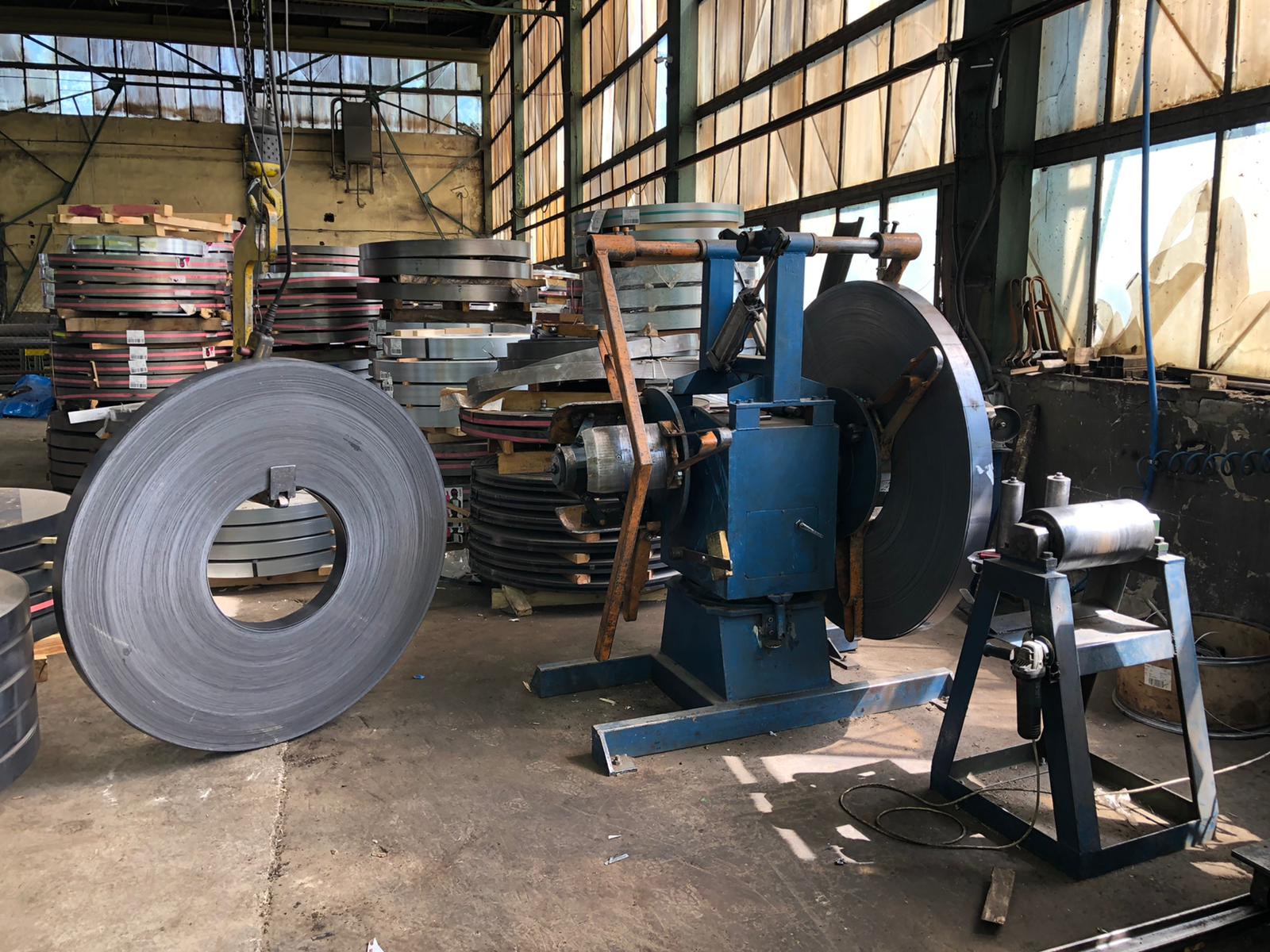

1. Double strip uncoiler
Width: 1650 mm
Length: 1100 mm
Height: 1900 mm
Capacity: 2 x 2000 kg
Maximum outer diameter of the strip: 1580 mm
Manual brake for steel strip rotation
Min/max mandrel expansion: 470/540 mm

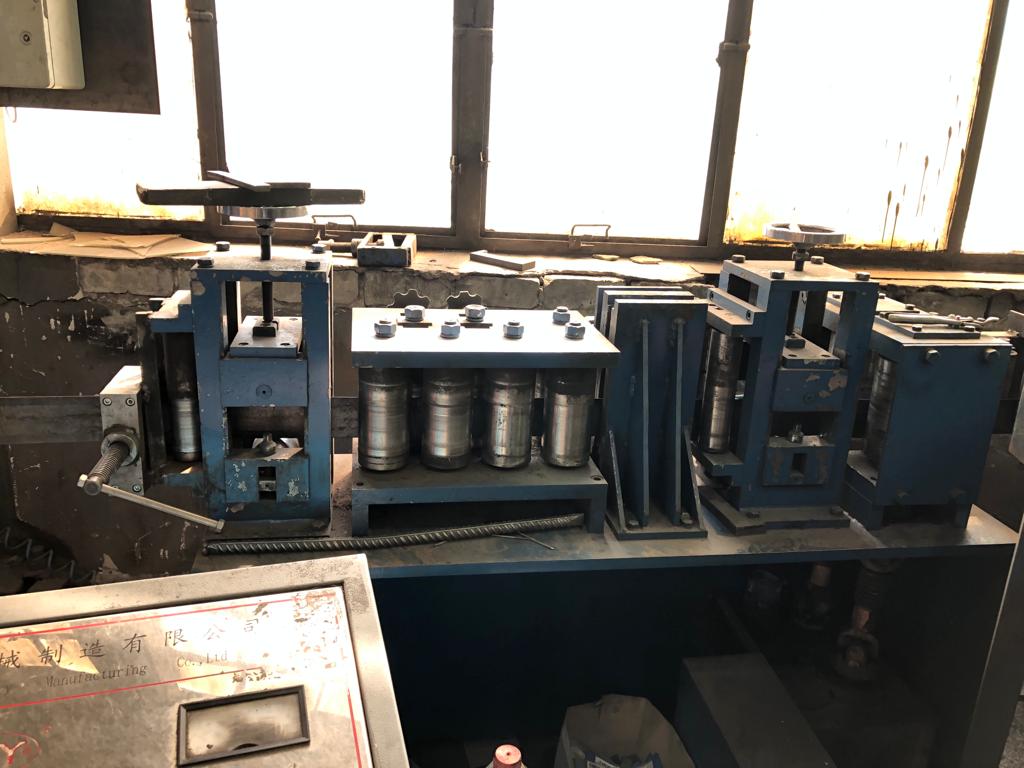

2. Strip end welder
Producer: Kent
Hydraulic cutting guillotine
Pneumatic clamp
TIG welder
Driven movement of TIG torch
3. Horizontal strip accumulator
Strip angle rotation unit

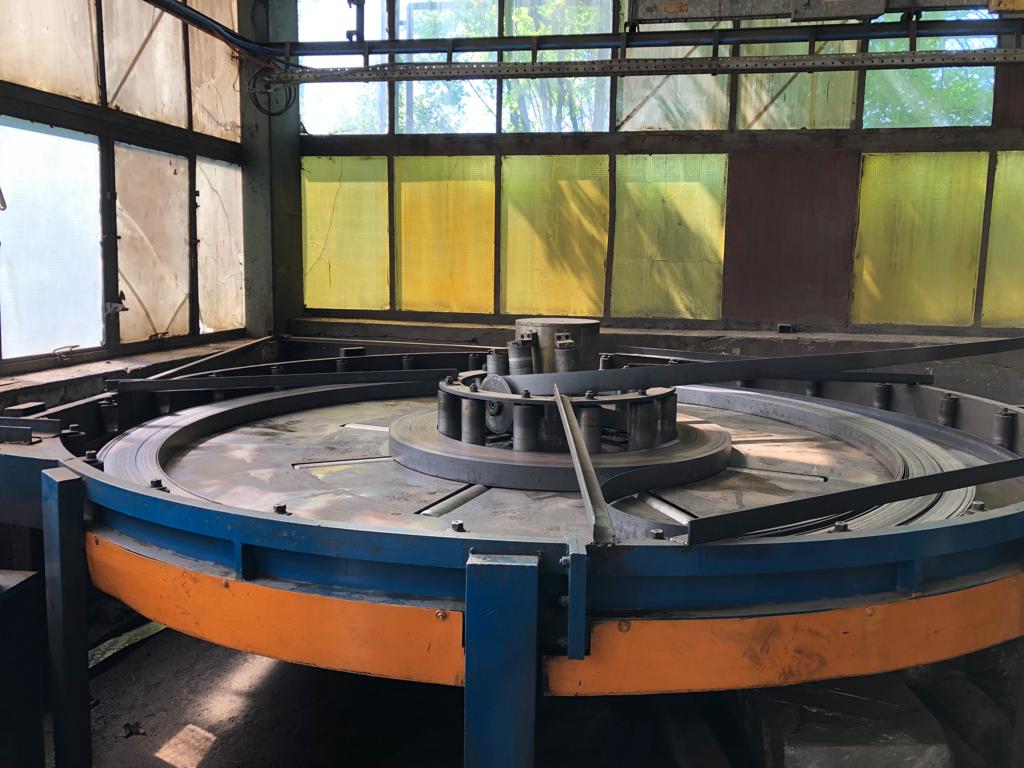

Strip entry unit
Strip exit unit

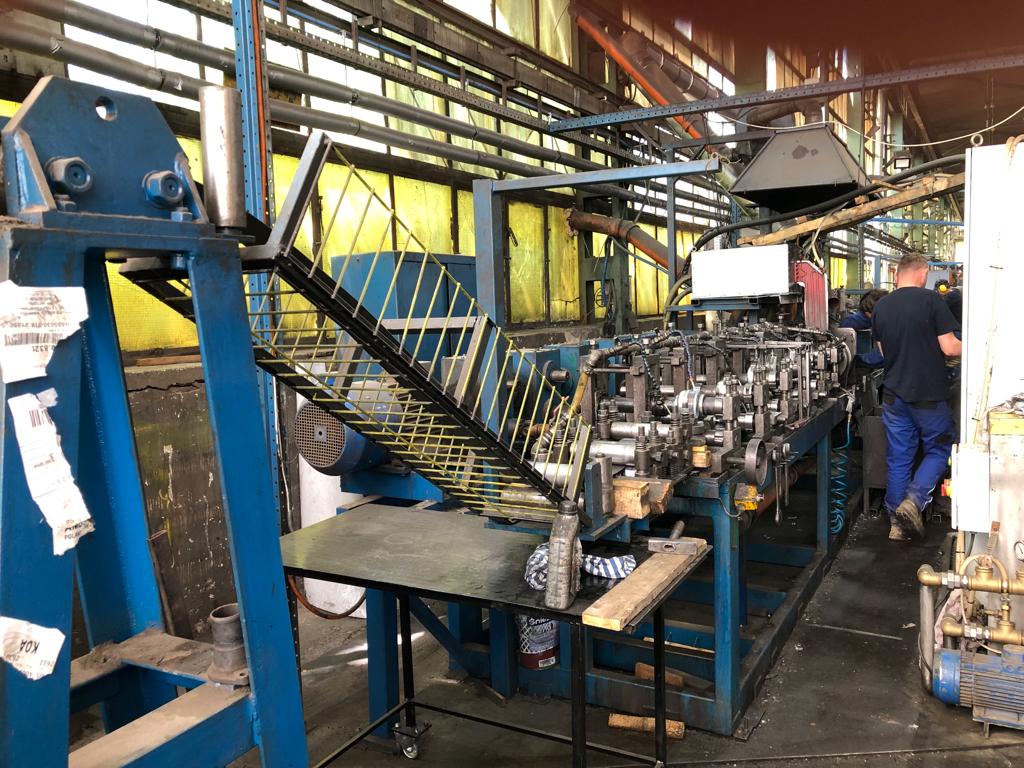

4. Forming section (breakdown, fin-pass)
Vertical cages: 6 (break-down:3, finpass: 3)
Horizontal cages: 4
Driven by gearboxes and cardan shafts
Diameter of shafts: 55 mm
5. Welding section
3- rools welding head
Self centring 3-rolls welding head
Manual 2-stands for scrap removal (weld)

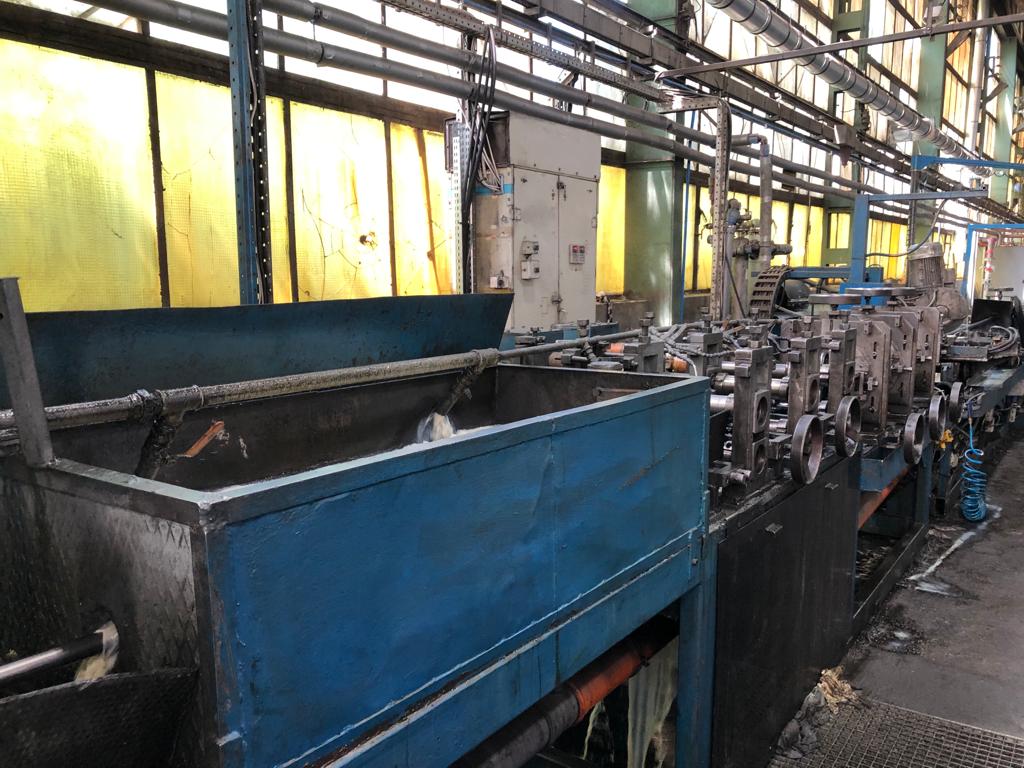

6. Cooling section
length : 1400 mm
width: 650 mm
height: 400 mm
self-draining cooling tank
7. Calibration section and Turk heads
Vertical cages: 3
Horizontal cages: 3
Turks head 3 with 4 rools
8. Cutting machine
Hydraulic vice opening and closing
Hydraulic lifting and lowering of the cutting head
Cutting blade cooling system

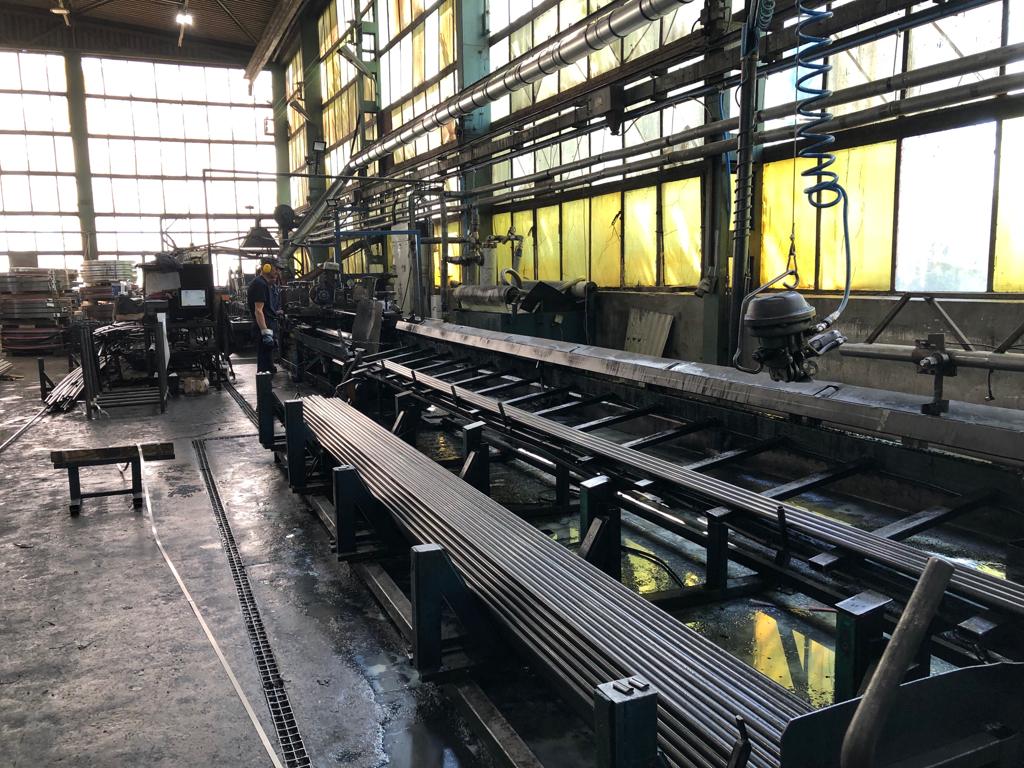

9. Packing section
Manual double-sided packing system
Min lenght of tube 3000 mm
Max lenght of tube 7500 mm
Pneumatic pipe unloading system
Possibility of packing packages with a cross-section: round, rectangular, square, hexagonal
