2000mm x12mm x30t Cut-to-length line BIGWOOD (A3771)

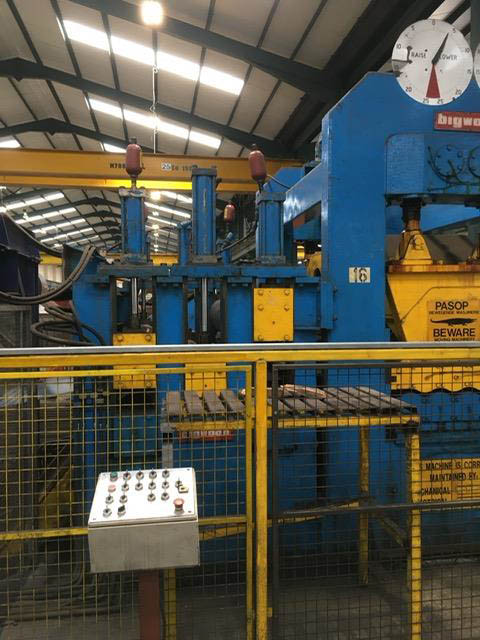

2000mm x12mm x30t Cut-to-length line BIGWOOD is perfect solution for sheet metal cutting up to 2000mm width and 12.5mm metal thickness. Machine is still installed and running, possible to inspect

Year: 1985 (2008 revamped)
Maximum strip width: 2000 mm
Minimum strip width: 300 mm
Metal thickness: 3-12.5mm
Maximum coil weight: 30t
Working speed: 15 m/min
Direction: right to left
Maximum sheet length: 7000 mm

Line consist of:
1. Coil storage
2. Pit mounted coil car
3. Double head decoiler
4 Snubber frame/Peeler unit
5. Entry pinch rolls/ breaker rolls
6. Seven roll back up leveller with exit deflector roll
7. Measuring roll
8. Start/stop shear
9. Pinch rolls
10. Stacker with lift table & conveyor
11. Run out conveyor
12. Hydraulic power pack
13. Electrical controls
