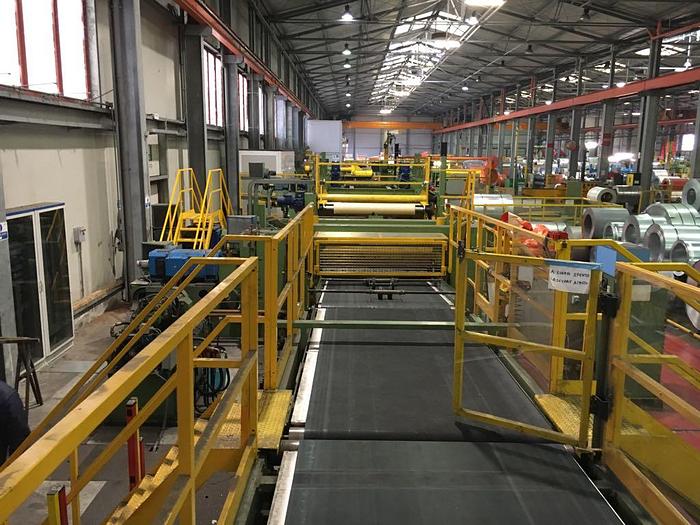

FIMI cut-to-length and slitting line 1850×2.5mm x 25t (A3775)

FIMI cut-to-length and slitting line 1850×2.5mm x 25t is perfect solution for combined operations. If you need to proceed both cross cutting and longitudinal cutting as well this machine can make it for you. So you can save your production space and make necessary sheet metal blanks for your further operations.

Manufacturer: FIMI

Material: Prepainted, cold rolled

Strip Width:
1850mm max (72.8″)

Strip Thickness:
0.3 – 2.5mm (.012 – 1.0″)

ID = 508-610mm (20-24″)
OD = 1900mm max (74.8″)
Weight = 25,000 kg max (55,000lbs)
Uncoiling from the top

23 rolls work rolls at 36mm (1.417″) diameter
Backup rolls = 7
Motor = 184 Kw

Max Number of Cuts = 3
Sheet width = 300mm min, 600mm max
Sheet length = 400mm min, 4000mm max
Width tolerance = +/- 0.5mm

Cut-To-Length Shear:
Max sheet length = 8000mm (315″ or 26.25 feet)
Min sheet length = 300mm (11.8″)
Max Stack height = 560mm including pallet (22″)

Line Speed:
75 mpm max (246 fpm)

Hand of Line = Left to Right

Coil Car
Auto Coil Centering With Photocell

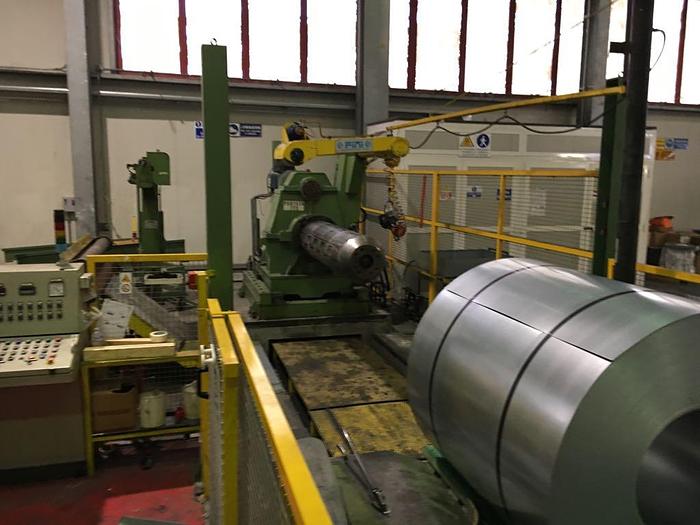

Single Mandrel Decoiler
Peeler Table
Crop Shear
6-Hhi Leveler
Film Dispenser
Circular Shear
Scrap Table
Scrap Baler
Loop Table
Rotary Shear
First Belt Conveyor
Second Belt Conveyor
Scrap Box
Auto Pallet Insertion System
Anti-Scratching Stacker (8000mm long … 4000+4000)
Chain Evacuation System
Semi-Automatic Strapping Machine
Scale (Weighing Machine)
Chain Evacuation System
Electrical Cabinet
Control Desks
Hydraulic Power Packs

Sold “as is, where is” EXW warehouse floor, dismantled.
