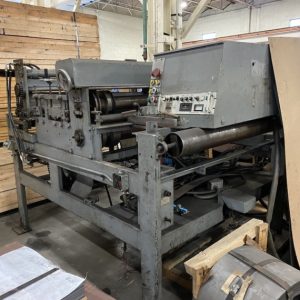

60″ x .080″ x 30,000Lb Iowa Precision / Herr Voss Multi Blanking Line


Multi Blanking Line Iowa Precision / Herr Voss is used for longitudinal and cross cutting of coil metal into blanks

Make: Iowa Precision
Material Width: 12″ – 60″
Material Thickness: .010″ – .080″
Coil Weight: 30,000Lb
Coil ID: 20″
Coil OD: 72″
Direction: Left to Right
Entry Coil Car
V-shape Floor Standing Design
Powered Lift & Traverse
Mandrel Uncoiler
3-Leaf Mandrel Design
Powered Expansion
Powered Hold – Down Roll
Electrical Drive Panel
Hydraulic Peeling Table
Adjustable Edge Guides
Driven Pinch Rolls
Adjustable Coil Braking Rolls
Herr – Voss 4-Hi Precision Leveler
Work Roll Diameter: 1.50″
Work Roll Width: 74″
Number of Work Rolls: 19
Adjustable Work Rolls
Up & Down Back Up Flights
Variable Speed Motor and Gear Box
Electrical Drive / Control Panel
Slitter / Shear
Make: Iowa Precision
Model: Slear 3
Entry and Exit Pinch Rolls
Slitting Head with Knives
Hydraulic Flying Shear
Servo Feed Traverse Drive
Exit Belt Conveyor
Two (2) Scrap Winders
Hydraulic Drive
Powered Open / Close
Sheet Stacker
Powered Lifting Table
Driven Run-Out Conveyor
Driven Exit Conveyor
Electrics, Hydraulics, Controls, Tooling
